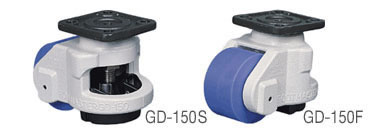

韩国FOOTMASTER福马脚轮 |
|
|
|
|
 |
 |
设计说明 |
| 每个允许承载Load capacity/pce |
1,500kg(3,300Ibs) |
| 四个允许承载 (Recommended load/4 pcs) |
3,000kg(6,600Ibs) |
| 净重(Net weight) |
S-type (丝杆型) |
3.5kg(7.7Ibs) |
| 使用温度(Temperature range) |
-10 ~ +90℃
(+14~+194℉) |
|
|

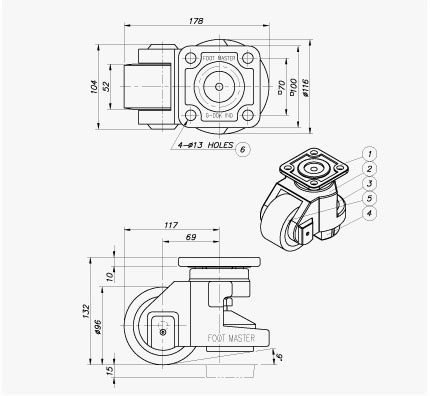

使用材料说明 |
①底板(Top plate) |
Forged steel |
②支架(Frame) |
Aluminum diecasted |
③调节轮(Handle) |
|
④支撑垫(Leveling pad) |
Aluminum |
⑤ 轮子(Wheel) |
MC nylon |
⑥ 固定螺栓(Mounting bolt) |
F-type(底板型) |
4-M12×1.75P |
⑦ 表面处理 (Surface treatment) |
粉喷及镀锌(Powder coated & Zinc galvanized ) |
|
|
|
|
