韩国FOOTMASTER福马脚轮 |
|
|
|
|
 |
 |
设计说明 |
| 每个允许承载Load capacity/pce |
250kg(550Ibs) |
| 四个允许承载 (Recommended load/4 pcs) |
500kg(1,100Ibs) |
| 净重(Net weight) |

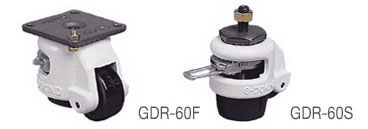

S-type (丝杆型) |
0.7kg(1.6Ibs) |
F-type(底板型) |
0.8kg(1.8Ibs) |
| 使用温度(Temperature range) |
-10 ~ +90℃(+14~+194℉) |
|
|

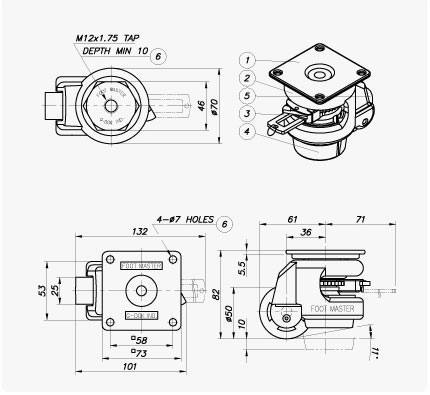

使用材料说明 |
①底板(Top plate) |
F-type : Pressed steel / S-type : Forged steel |
②支架(Frame) |
Aluminum diecasted |
③调节轮(Handle) |
Aluminum |
④支撑垫(Bearing) |
橡胶(聚氨脂/NBR(Polyurethane, Anti-static polyurethane available by order) |
⑤轮子(Spring) |
尼龙-6(Nylon-6) |
⑥固定螺栓(Mounting bolt) |
S-type(丝杆型) |
M12x1.75P |
F-type (底板型) |
4-M6x1.0P |
⑦表面处理 (Surface treatment) |
粉喷及镀锌(Powder coated & Zinc galvanized ) |
|
|
|
|
