韩国FOOTMASTER福马脚轮 |
|
|
|
|
|
 |
 |

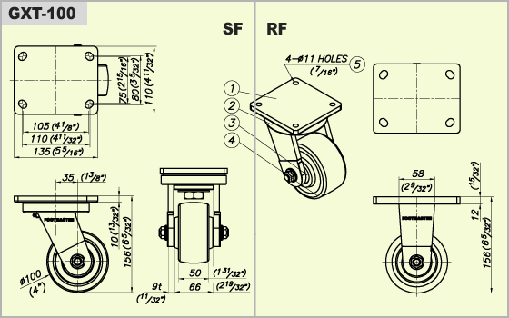

设计说明 |
| 每个允许承载Load capacity/pce |
400kg(880Ibs) |
| 四个允许承载 (Recommended load/4 pcs) |
1,200kg(2,640Ibs) |
| 净重(Net weight) |
F-type(底板型) |
4.2(9.2Ibs) |
| 使用温度(Temperature range) |
-10 ~ +90℃(+14 ~ +194℉) |
|
|
使用材料说明 |
①底板(Top plate) |
Forged steel |
②支架(Frame) |
Carbon steel |
③ 支撑垫(Bearing) |
Ball bearing #6206zz |
④ 调节轮(Handle) |
Polyurethane with aluminum core / steel / MC nylon core |
⑤ 固定螺栓(Mounting bolt) |
F-type (底板型) |
4-M12x1.75P |
⑥ 表面处理 (Surface treatment) |
镀锌( Zinc galvanized ) |
|
|
|
|
