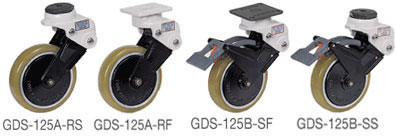

韩国FOOTMASTER福马脚轮 |
|
|
|
|
|
 |
 |
使用承载说明 |
NO |
许可承载范围(Load Range) |
吸振胶垫硬度load Factor |
Kg |
Lbs |
Share A |
1 |
240 |
520 |
65 |
2 |
300 |
660 |
75 |
|
|
设计说明 |
| 每个允许承载Load capacity/pce |
100 kg (220Ibs) |
| 四个允许承载 (Recommended load/4 pcs) |
240 ~ 300 kg (520~660Ibs) |
| 净重(Net weight) |
S-type |
1.3 kg (2.9Ibs) |
F-type |
1.4 kg (3.1Ibs) |
| 使用温度(Temperature range) |
-10 ~ +90℃(+14 ~ +194℉) |
|
|

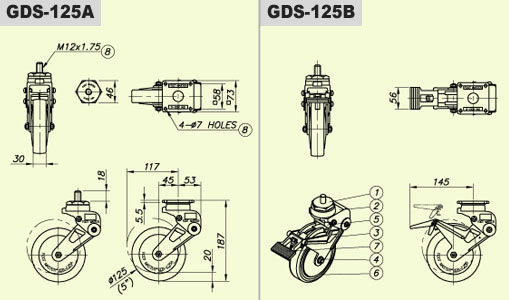

材料说明 |
①底板(Top plate) |
Forged steel |
②支架(Frame) |
Aluminum diecasted |
③摆动臂(Leg) |
Aluminum diecasted |
④轴承(Bearing) |
Ball bearing #608zz |
⑤吸振垫(Spring) |
特殊弹力胶(Special rubber) |
⑥轮子(Wheel) |
铝芯包聚氨脂(Polyurethane/Anti-static polyurethane with aluminum core ) |
⑦刹车踏板(Stopper) |
尼龙-6(Nylon-6) |
⑧固定螺栓(Mounting bolt) |
S-type |
M12x1.75P |
F-type |
4-M6x1.0P |
⑨表面处理 (Surface treatment) |
粉喷及镀锌(Powder coated & Zinc galvanized ) |
|
|
|
|
