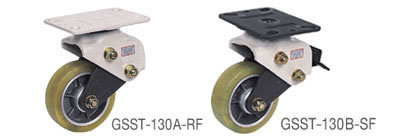

韩国FOOTMASTER福马脚轮 |
|
|
|
|
|
 |
 |
设计说明 |
| 每个允许承载Load capacity/pce |
Within10kg/h |
400 kg(880Ibs) |
|
Within20kg/h |
250kg(550Ibs) |
| 四个允许承载 (Recommended load/4 pcs) |
1,200 kg(2,640Ibs) |
| 净重(Net weight) |
F-type |
5.0 kg(11.0Ibs) |
| 使用温度(Temperature range) |
-10 ~ +90℃(+14 ~ +194℉) |
|
|

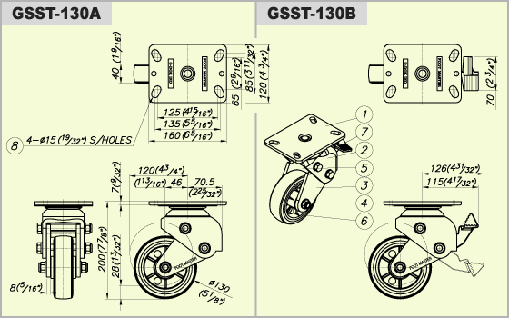

材料说明 |
①底板(Top plate) |
Forged steel |
②支架(Frame) |
Pressed steel |
③摆动臂(Leg) |
Carbon steel |
④轴承(Bearing) |
Ball bearing #6202zz |
⑤吸振垫(Spring) |
特殊弹力胶(Special rubber) |
⑥轮子(Wheel) |
铝芯包聚氨脂(Polyurethane/Anti-static polyurethane with aluminum core ) |
⑦刹车踏板(Stopper) |
Aluminum |
⑧固定螺栓(Mounting bolt) |
F-type |
4-M12x1.75P |
⑨表面处理 (Surface treatment) |
粉喷及镀锌(Powder coated & Zinc galvanized ) |
|
|
|
|
