韩国FOOTMASTER福马脚轮 |
|
|
|
|
|
 |
 |
设计说明 |
| 每个允许承载Load capacity/pce |
Within 10km/h |
1,350 kg(2,970Ibs) |
Within20km/h |
1,000kg(2,200Ibs) |
| 四个允许承载 (Recommended load/4 pcs) |
4,000 kg(8,800Ibs) |
| 净重(Net weight) |
F-type |
14.7 kg(32.4Ibs) |
| 使用温度(Temperature range) |
-10 ~ +90℃(+14 ~ +194℉) |
|
|

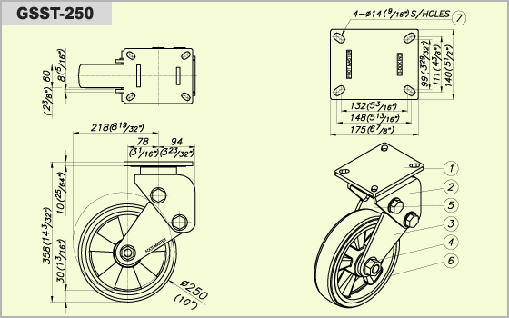

材料说明 |
①底板(Top plate) |
Forged steel |
②支架(Frame) |
Pressed steel |
③摆动臂(Leg) |
Carbon steel |
④轴承(Bearing) |
Ball bearing #6205zz |
⑤吸振垫(Spring) |
特殊弹力胶(Special rubber) |
⑥轮子(Wheel) |
铝芯包聚氨脂(Polyurethane/Anti-static polyurethane with aluminum core ) |
⑦固定螺栓(Mounting bolt) |
F-type |
4-M12x1.75P |
⑧ 表面处理 (Surface treatment) |
粉喷及镀锌(Powder coated Zinc galvanized ) |
|
|
|
|
